Electrical System Bench Test

Posted on February 20, 2012 by Thomas Daede.

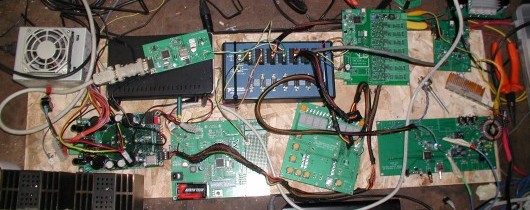

Centaurus 3s electrical system is coming together! Pictured is the current bench test setup, featuring most of the electrical components of the car. All of the boards are connected together using an National Instruments CAN breakout box. The router in the image is running a special web server that streams the CAN packets to LabView and HTML front-ends.
